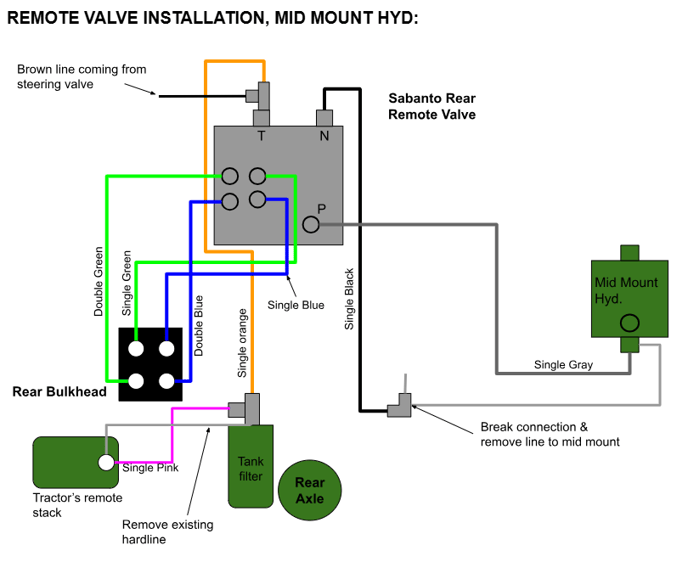

      John Deere 6E Hydraulics Installation

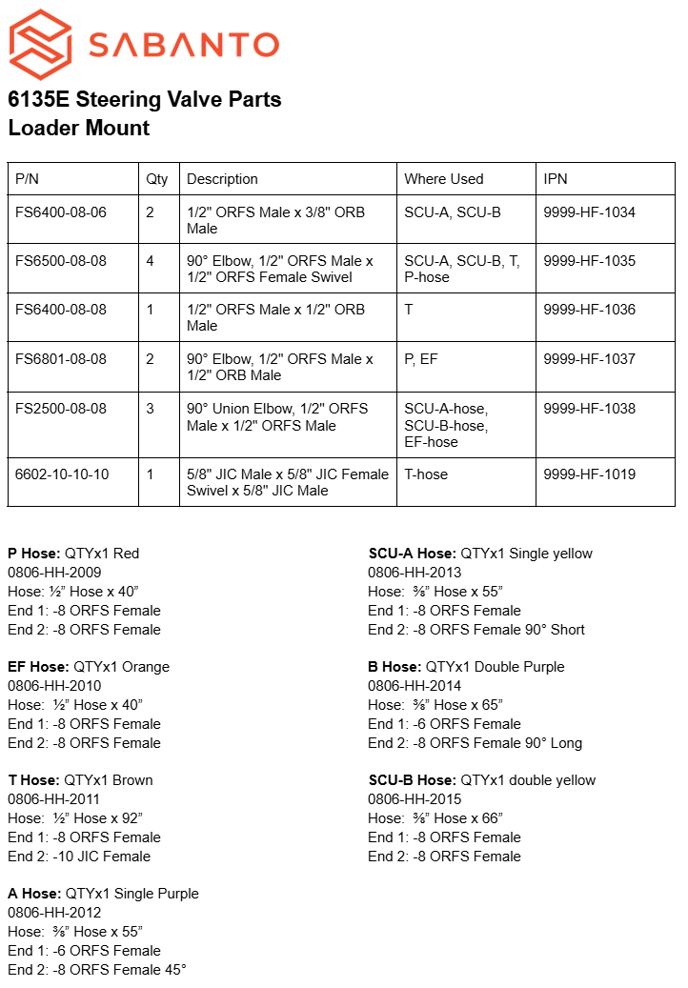

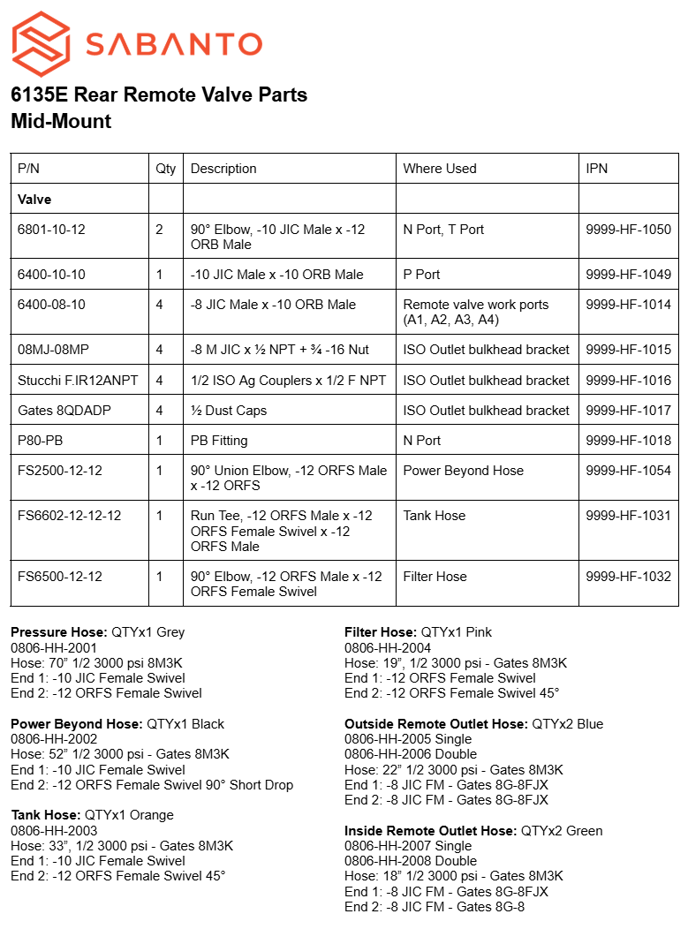

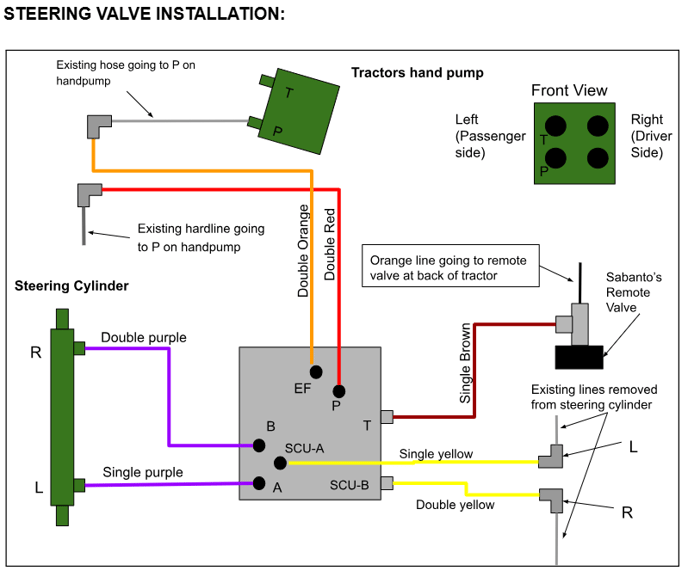

      Screenshot 2025-04-25 093304Screenshot 2025-04-25 092801Screenshot 2025-04-25 093227Screenshot 2025-04-25 093109

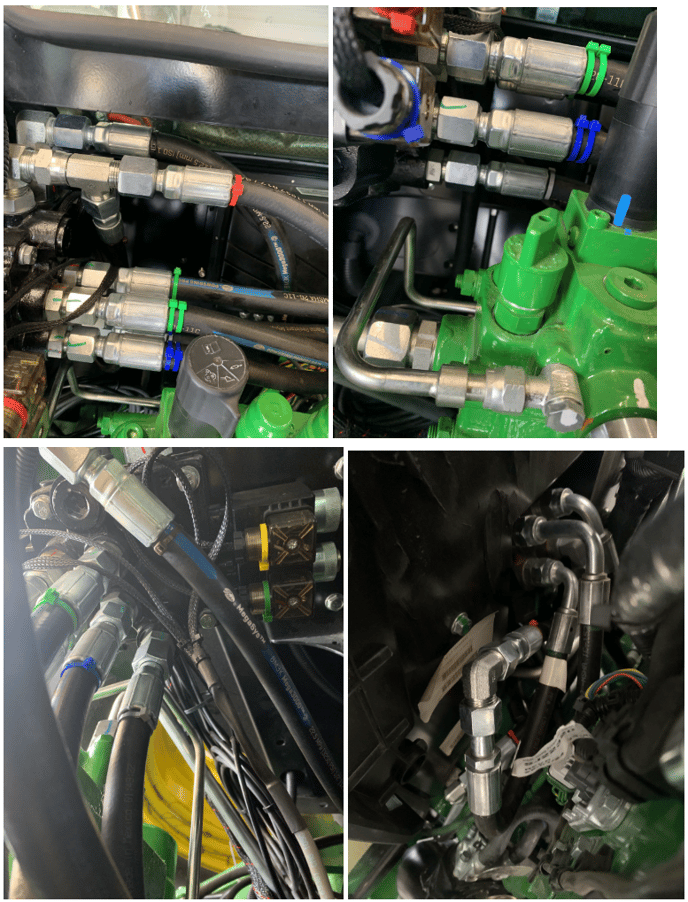

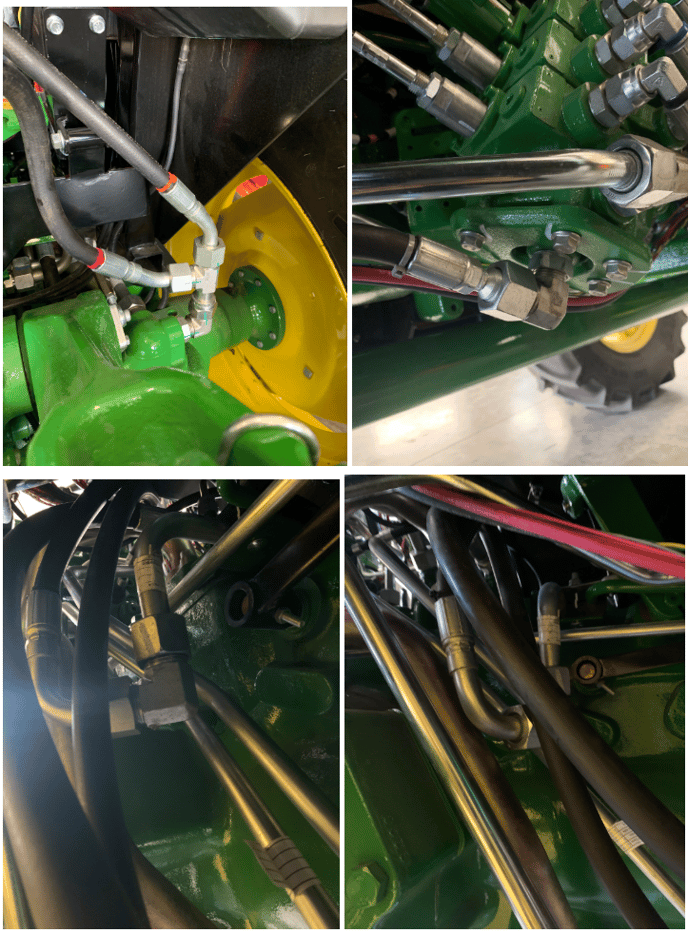

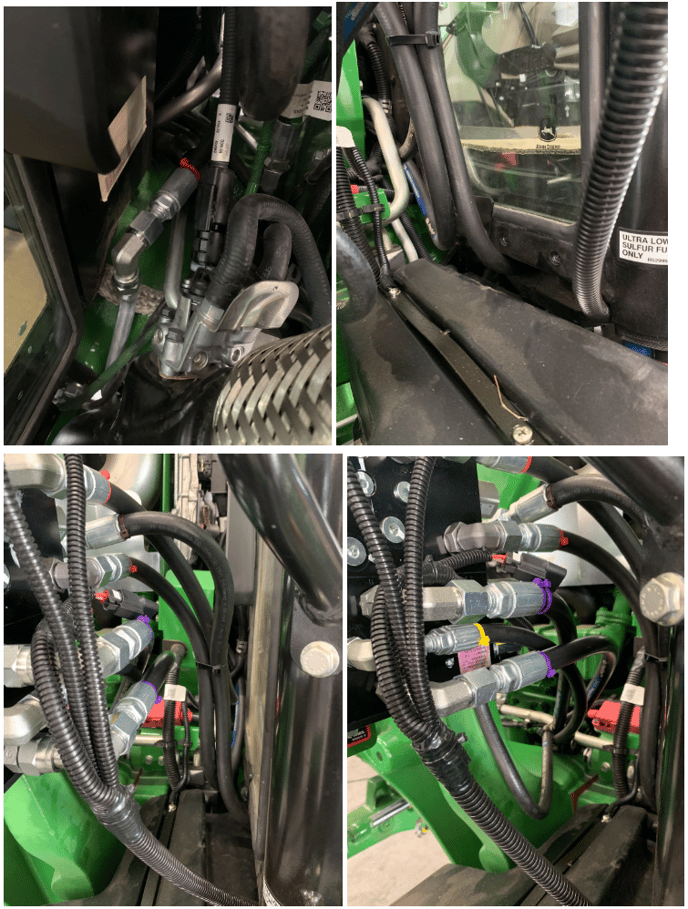

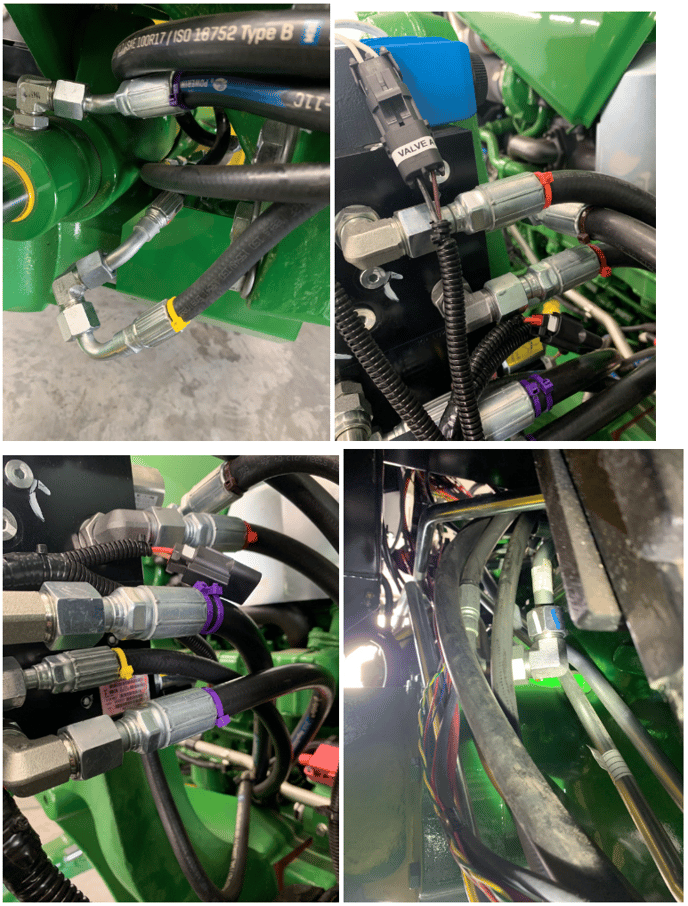

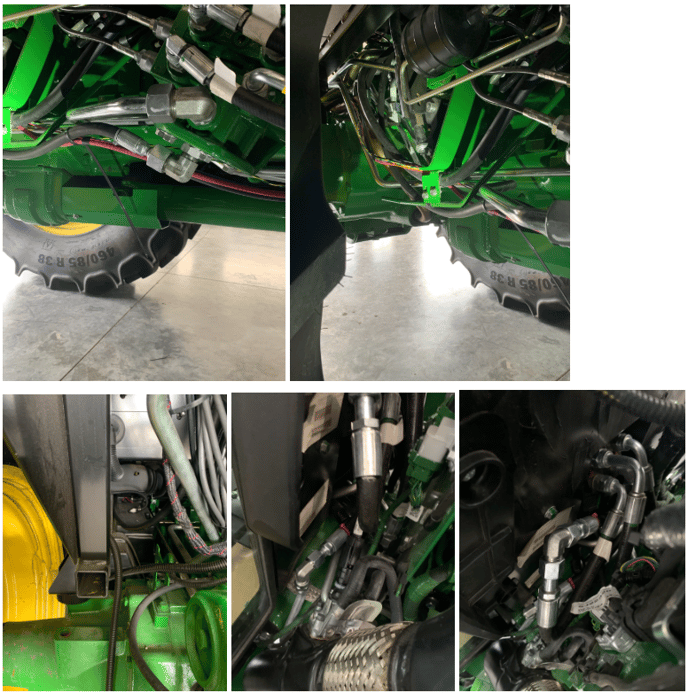

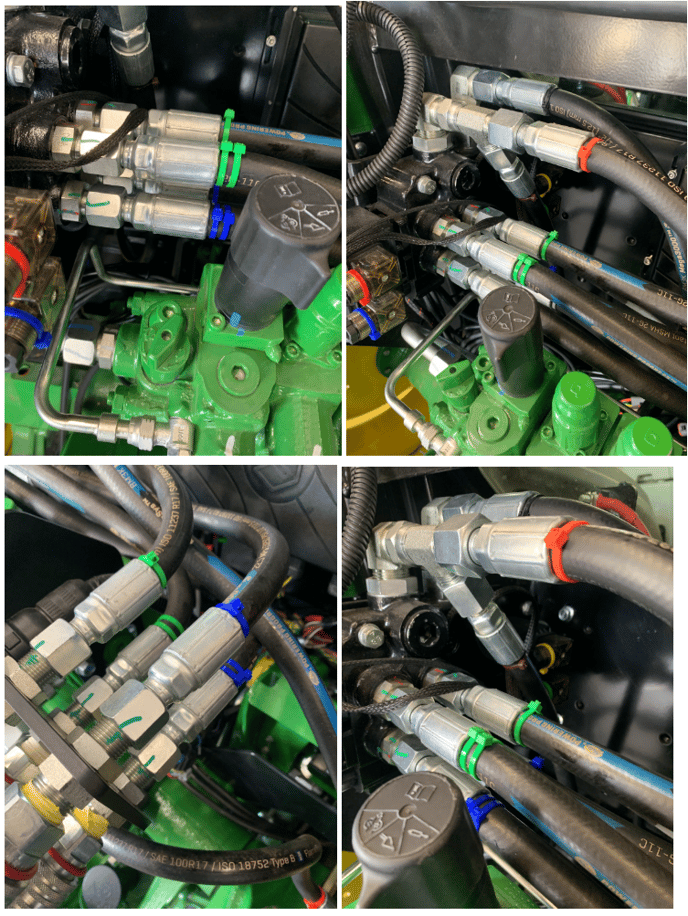

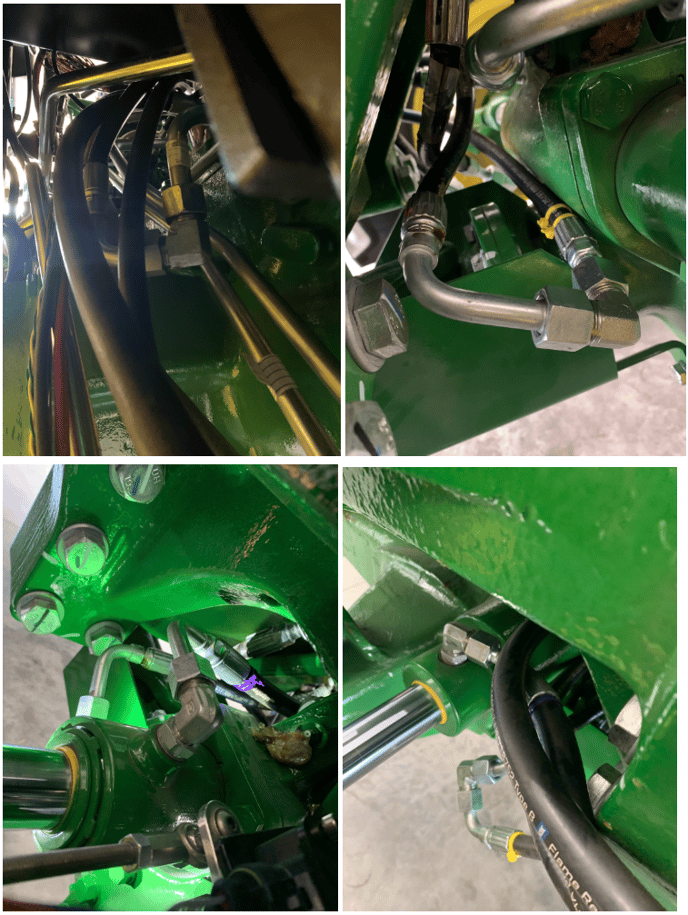

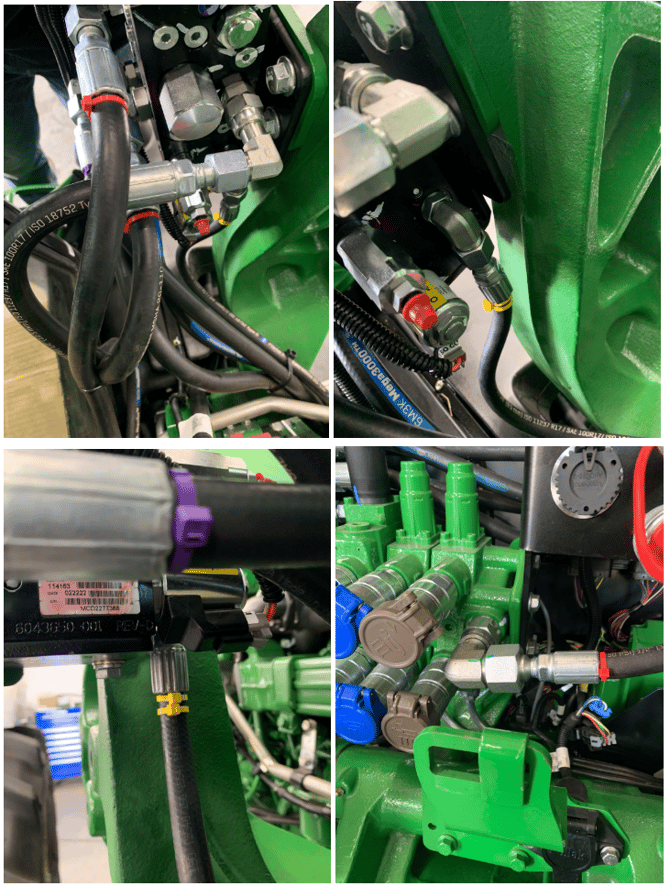

      Midmount Hydraulic PDF

      Screenshot 2025-04-25 100307Screenshot 2025-04-25 100254Screenshot 2025-04-25 100210Screenshot 2025-04-25 100158Screenshot 2025-04-25 100220Screenshot 2025-04-25 100232Screenshot 2025-04-25 100243Screenshot 2025-04-25 100316







      Screenshot 2025-04-25 093555

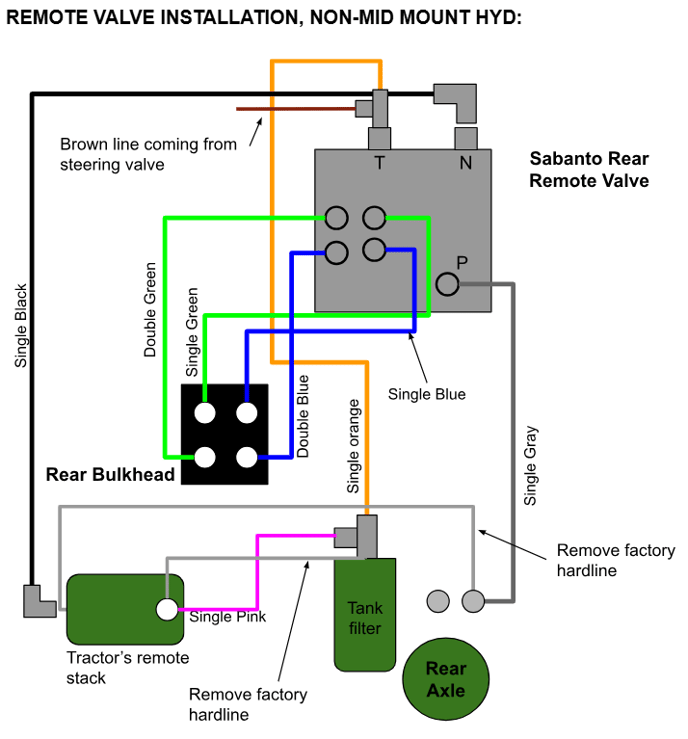

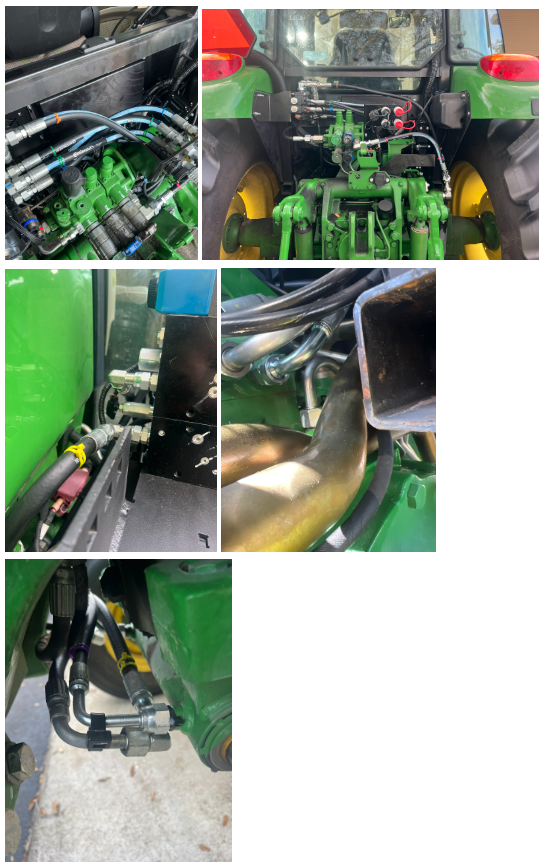

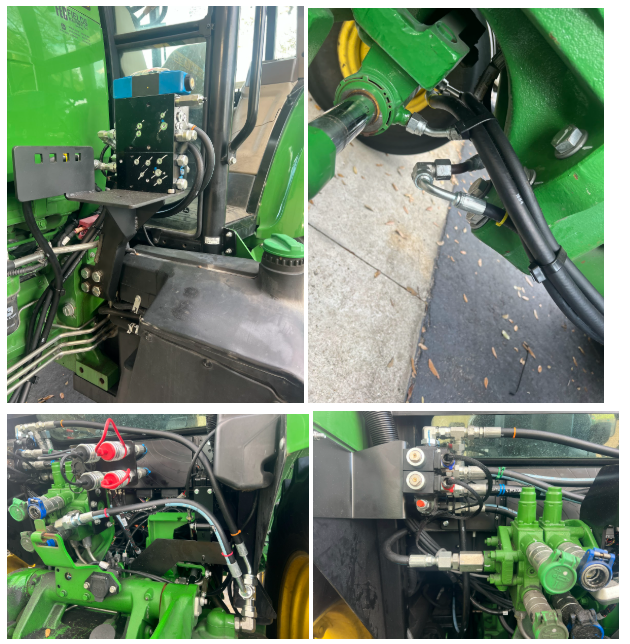

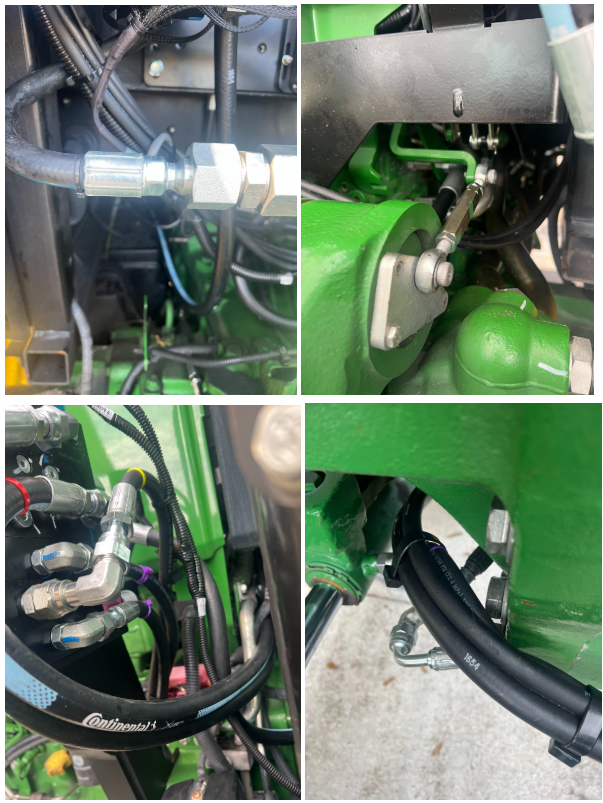

      Non-Midmount PDF



      Screenshot 2025-04-25 094601Screenshot 2025-04-25 094532Screenshot 2025-04-25 094547

      Screenshot 2025-04-25 095121Screenshot 2025-04-25 095138
